PE-2000

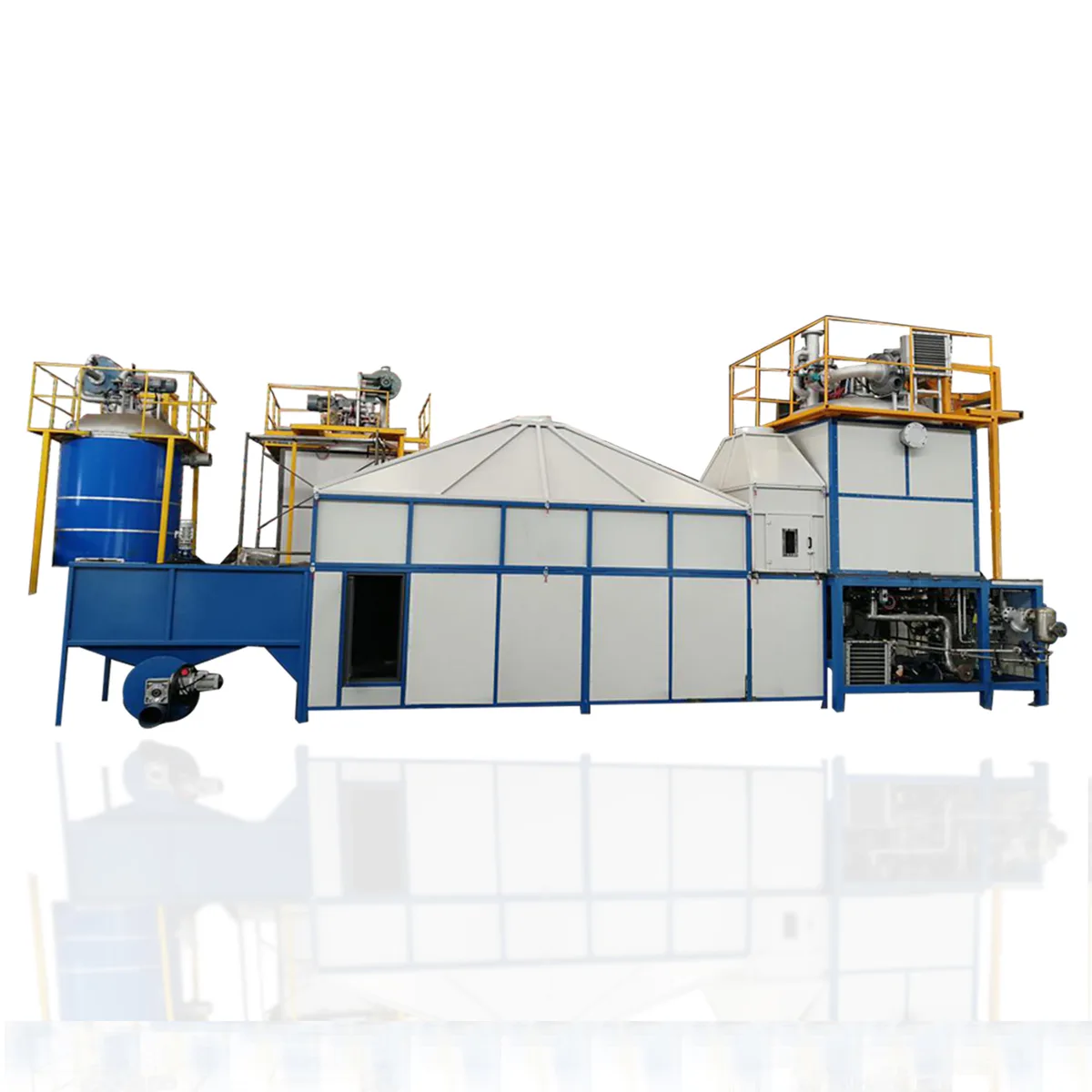

PE-2000 Continuous Pre-Expander
The PE-2000 is our flagship continuous pre-expander for large-scale EPS production. Delivering up to 2,000 kg/h with automatic density control, it is built for 24/7 non-stop operation. Multi-zone steam injection ensures uniform bead expansion, while SCADA integration enables full production line monitoring.
| Barrel Diameter | 2,000 mm |
| Capacity | 1,800-2,000 kg/h |
| Steam Pressure | 0.20-0.25 MPa |
| Steam Consumption | 140-150 kg/batch |
| Installed Power | 55 kW |
| Expansion Ratio | 40-80 times |
| Machine Weight | 12,000 kg |
| Dimensions (L×W×H) | 3,800 × 3,000 × 5,800 mm |
| Certifications | CEISO 9001ISO 14001 |
Key Features
- Continuous pre-expanding for non-stop production
- Siemens PLC with SCADA integration
- Automatic density control with feedback loop
- Multi-zone steam injection for uniform expansion
- Built-in fluidized bed dryer connection
- Low maintenance design with easy-access panels
- Touchscreen HMI with production data logging
- Energy recovery system for reduced operating costs
Applications
Large-scale EPS production plantsHigh-volume insulation board manufacturingContinuous 24/7 production operations
CE & ISO 9001 Certified 5-Year Warranty 24h Response
