BM-1600

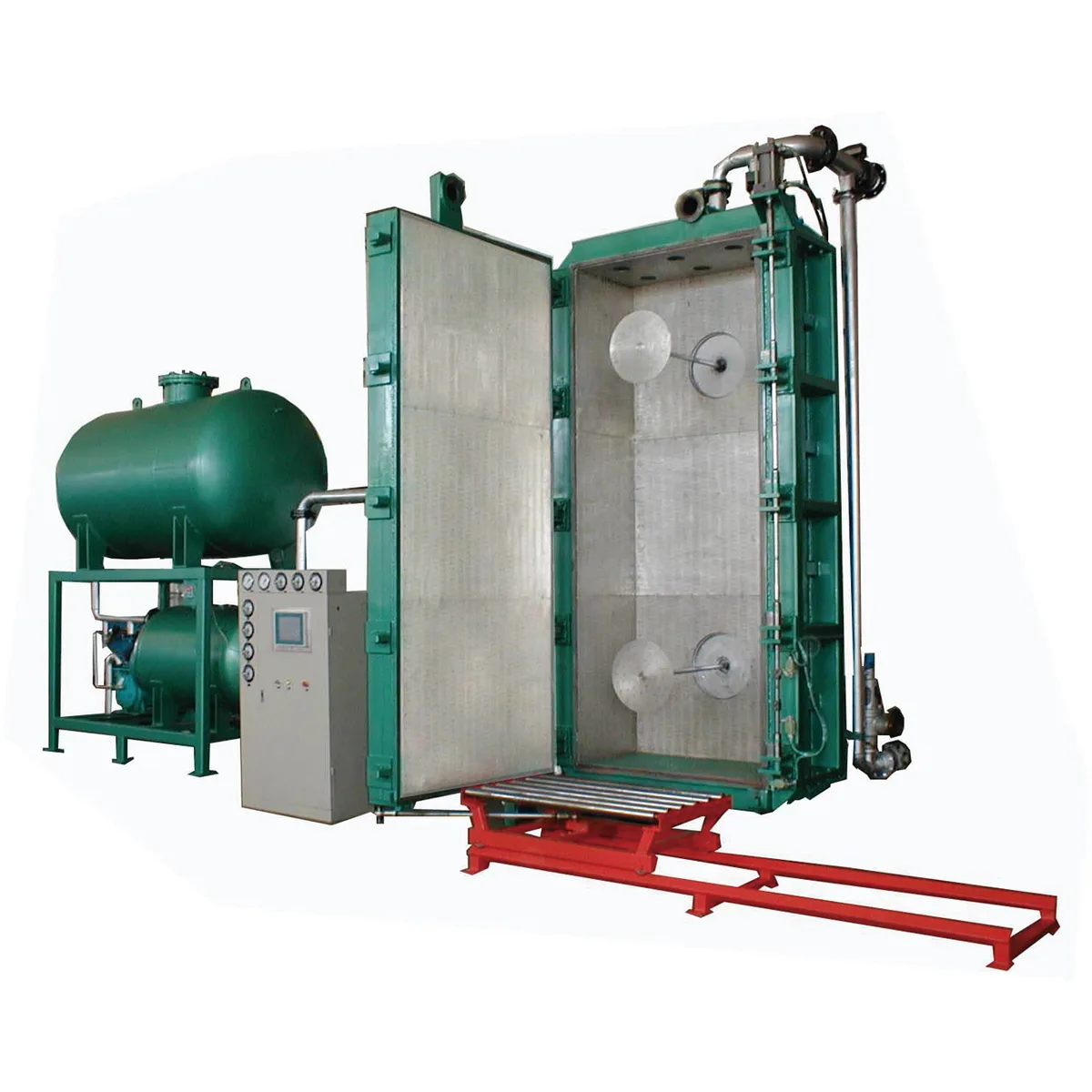

BM-1600 Automatic Block Molding Machine
The BM-1600 is a high-capacity automatic EPS block molding machine engineered for industrial-scale foam block production. It produces blocks up to 1,600 x 1,000 x 500 mm with 4-6 minute cycle times, high-capacity vacuum cooling, and remote monitoring capability at 37 kW installed power. Built for large-scale manufacturers producing insulation boards, civil engineering geofoam blocks, and high-volume packaging materials.
| Block Size (L×W×H) | 1,600 × 1,000 × 500 mm |
| Cycle Time | 4-6 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 55-70 kg/cycle |
| Installed Power | 37 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | High-capacity water ring pump |
| Machine Weight | 14,000 kg |
| Certifications | CEISO 9001 |
Key Features
- Fully automatic PLC-controlled molding cycle
- High-pressure hydraulic mold clamping
- High-capacity vacuum cooling system
- Automatic material filling with air-assist
- Adjustable block density from 8-30 kg/m³
- Auto-ejection and block pusher system
- Remote monitoring and diagnostics
- Energy-efficient steam distribution design
Applications
Large-scale EPS insulation board productionGeofoam blocks for civil engineeringHigh-volume packaging block manufacturing
CE & ISO 9001 Certified 5-Year Warranty 24h Response
