BM-1400

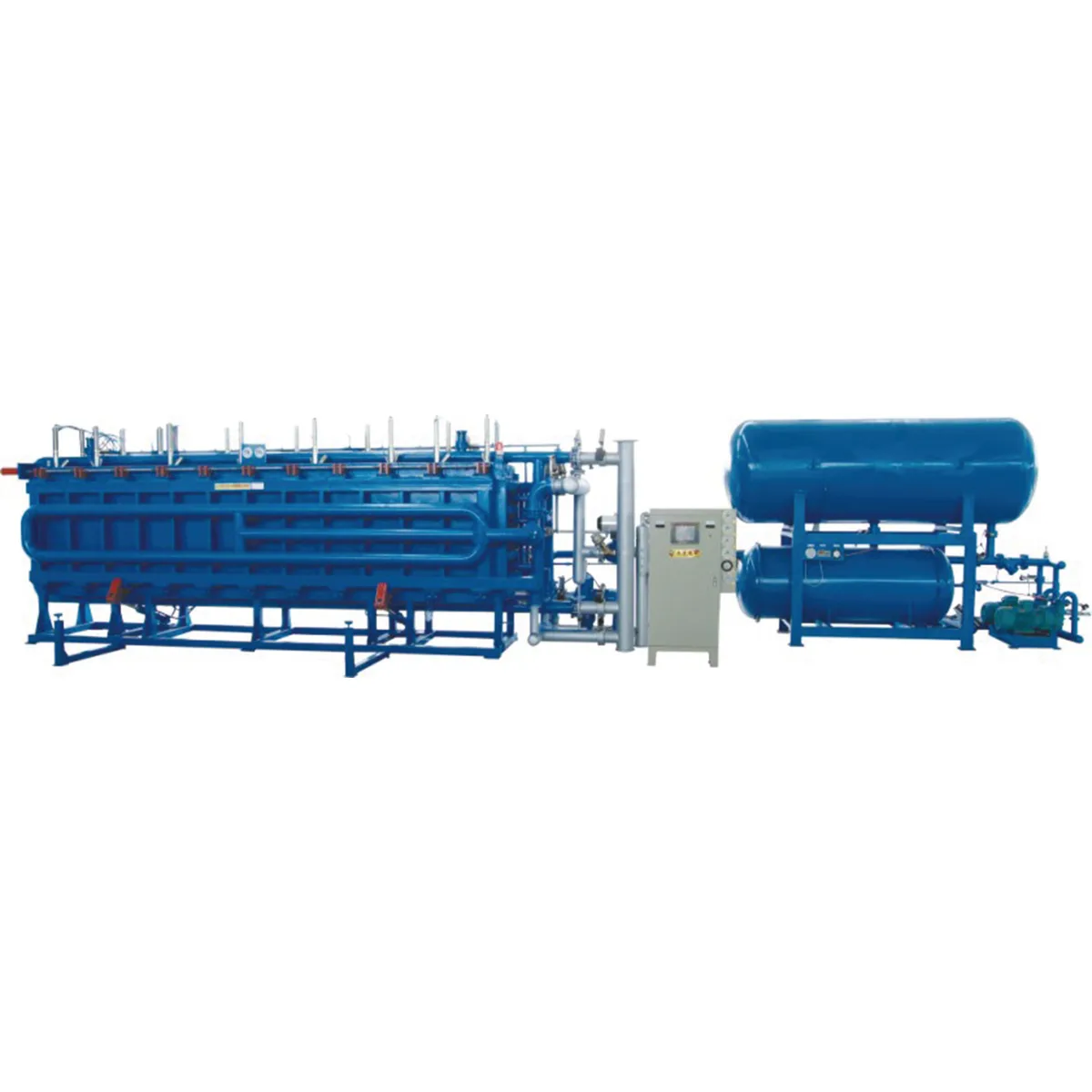

BM-1400 Automatic Block Molding Machine
The BM-1400 is a mid-range automatic EPS block molding machine that steam-fuses pre-expanded beads into large foam blocks for cutting into sheets and panels. It produces blocks up to 1,400 x 800 x 400 mm with 5-7 minute cycle times, adjustable density from 8-30 kg/m3, and energy-efficient steam distribution. Ideal for medium-scale manufacturers of construction insulation boards, packaging materials, and geofoam blocks.
| Block Size (L×W×H) | 1,400 × 800 × 400 mm |
| Cycle Time | 5-7 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 45-55 kg/cycle |
| Installed Power | 30 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | Built-in water ring pump |
| Machine Weight | 10,000 kg |
| Certifications | CEISO 9001 |
Key Features
- Fully automatic PLC-controlled molding cycle
- High-pressure hydraulic mold clamping
- Vacuum cooling for reduced cycle times
- Automatic material filling with air-assist
- Adjustable block density from 8-30 kg/m³
- Auto-ejection and block pusher system
- Energy-efficient steam distribution design
Applications
EPS insulation boards for constructionPackaging blocks for cutting into sheetsMedium-scale production facilities
CE & ISO 9001 Certified 5-Year Warranty 24h Response
