BM-1200

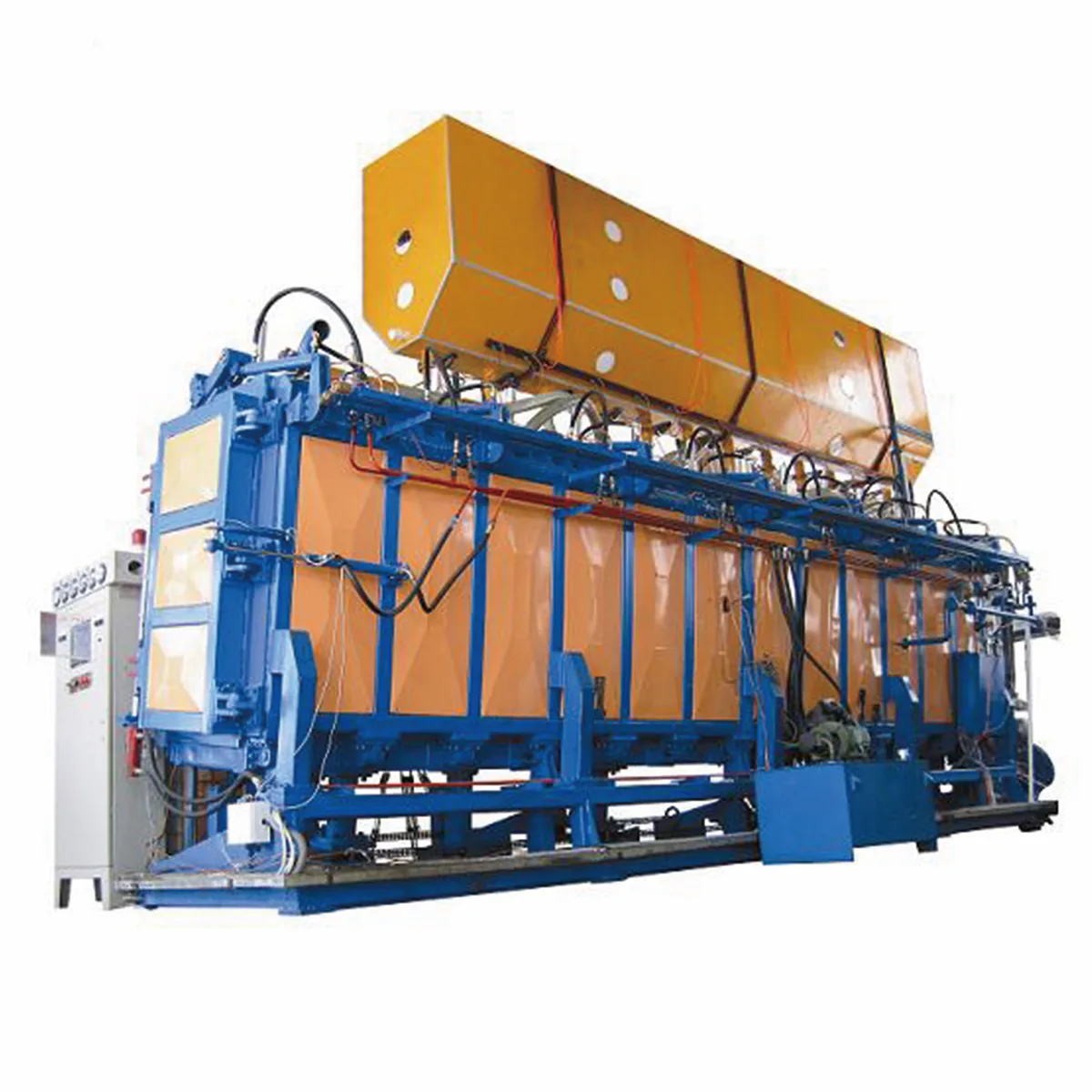

BM-1200 Automatic Block Molding Machine
An EPS block molding machine is industrial equipment that fuses pre-expanded polystyrene beads into large solid blocks using steam and pressure. The BM-1200 produces blocks up to 1,200 x 600 x 300 mm with hydraulic clamping, vacuum cooling, and 6-8 minute cycle times at densities of 8-30 kg/m3. It is designed for small to medium EPS factories producing insulation boards, packaging blocks, and construction panels.
| Block Size (L×W×H) | 1,200 × 600 × 300 mm |
| Cycle Time | 6-8 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 30-40 kg/cycle |
| Installed Power | 20 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | Built-in water ring pump |
| Machine Weight | 8,000 kg |
| Certifications | CEISO 9001 |
Key Features
- Fully automatic PLC-controlled molding cycle
- Hydraulic mold clamping system
- Vacuum cooling for reduced cycle times
- Automatic material filling with air-assist
- Adjustable block density from 8-30 kg/m³
- Auto-ejection and block pusher system
Applications
EPS insulation boards for constructionPackaging blocks for cuttingSmall to medium production facilities
CE & ISO 9001 Certified 5-Year Warranty 24h Response
