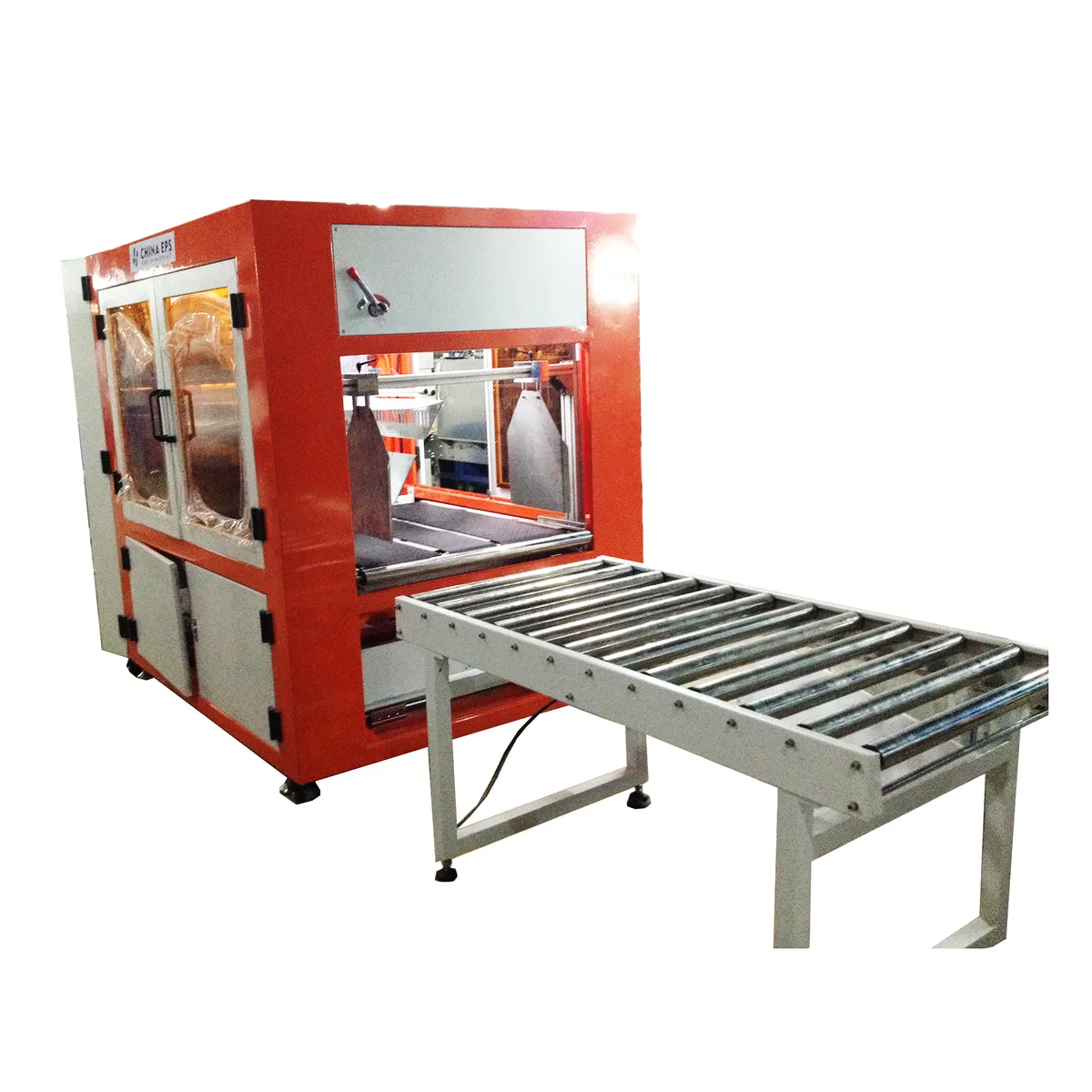

AP-100 Automatic EPS Packing Machine
An EPS packing machine is automated equipment that wraps foam blocks and insulation boards in protective PE shrink film for shipping and storage. The AP-100 packs up to 6 blocks per minute with automatic block detection, adjustable film tension, and heat sealing at 5 kW installed power. It is designed for end-of-line automation in EPS insulation board factories, packaging block producers, and construction material plants.
| Packing Speed | 3-6 blocks/min |
| Film Width | 800-1,500 mm |
| Applicable Block Size | Up to 1,200 × 600 × 500 mm |
| Installed Power | 5 kW |
| Air Pressure | 0.6-0.8 MPa |
| Machine Weight | 1,200 kg |
| Dimensions (L×W×H) | 3,500 × 2,000 × 2,200 mm |
| Certifications | CEISO 9001 |
Key Features
- Automatic block detection and packing cycle
- Adjustable film tension control
- Heat sealing for secure packaging
- Compatible with PE shrink film
- Low film waste design
- Inline integration with cutting machines
Applications
EPS insulation board packingPackaging block wrappingProduction line end-of-line automation
CE & ISO 9001 Certified 5-Year Warranty 24h Response
