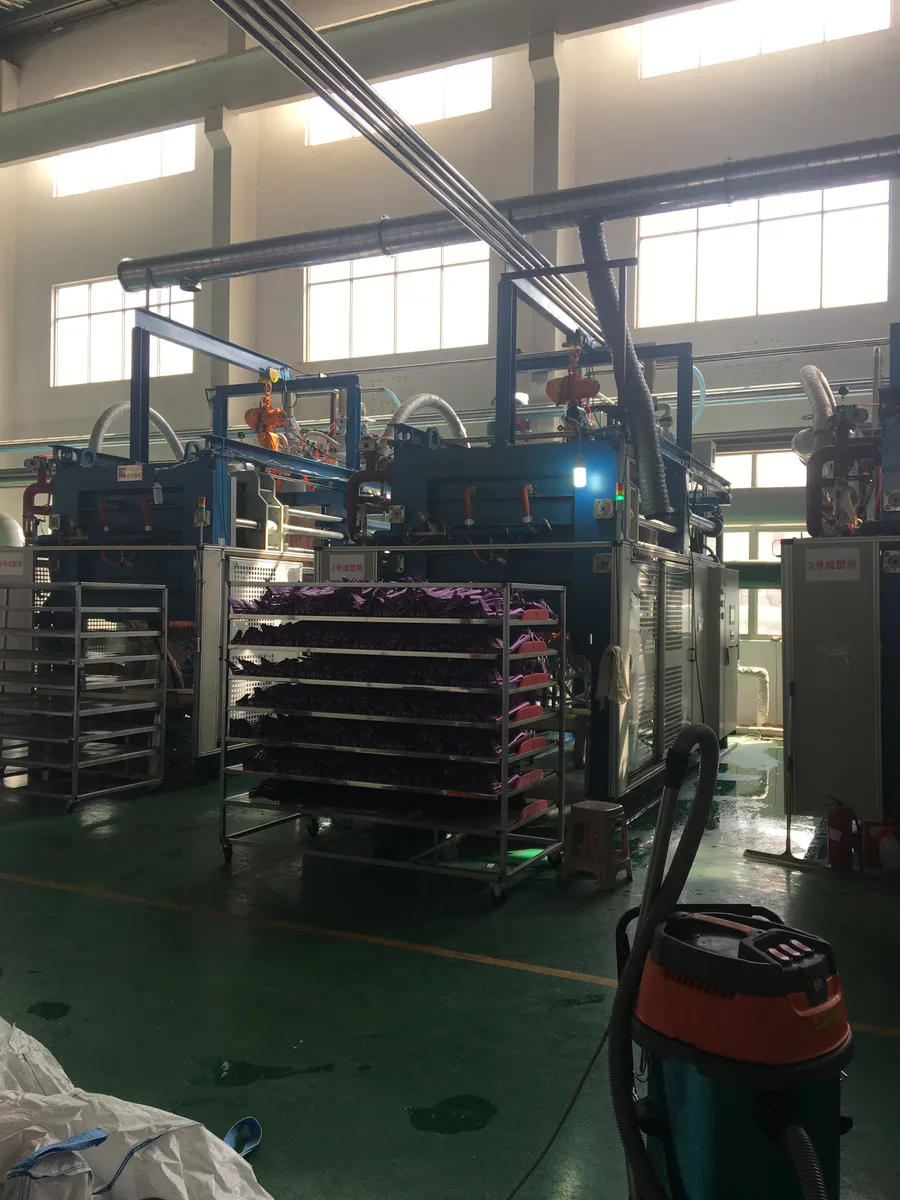

SM-1000 Automatic Shape Molding Machine
An EPS shape molding machine is automated equipment that molds pre-expanded polystyrene beads into custom-shaped foam products using steam, pressure, and precision molds. The SM-1000 features 1,000 x 800 mm mold capacity, 15-ton hydraulic clamping force, and cycle times as fast as 90 seconds with vacuum cooling. It is designed for manufacturers producing EPS packaging inserts, fish boxes, food containers, and custom foam shapes.
| Mold Size (L×W) | 1,000 × 800 mm |
| Cycle Time | 90-180 seconds |
| Steam Pressure | 0.08-0.12 MPa |
| Clamping Force | 15 tons |
| Installed Power | 18 kW |
| Ejection System | Hydraulic + pneumatic |
| Machine Weight | 6,000 kg |
| Dimensions (L×W×H) | 3,200 × 2,000 × 2,800 mm |
| Certifications | CEISO 9001 |
Key Features
- PLC automatic control with touch screen
- Hydraulic mold clamping with fast lock
- Precision steam control for uniform fusion
- Automatic ejection and product counter
- Quick mold change system
- Vacuum cooling for reduced cycle times
Applications
EPS packaging inserts for electronicsFish boxes and food packagingSmall decorative elements and shapes
CE & ISO 9001 Certified 5-Year Warranty 24h Response
