CM-8000

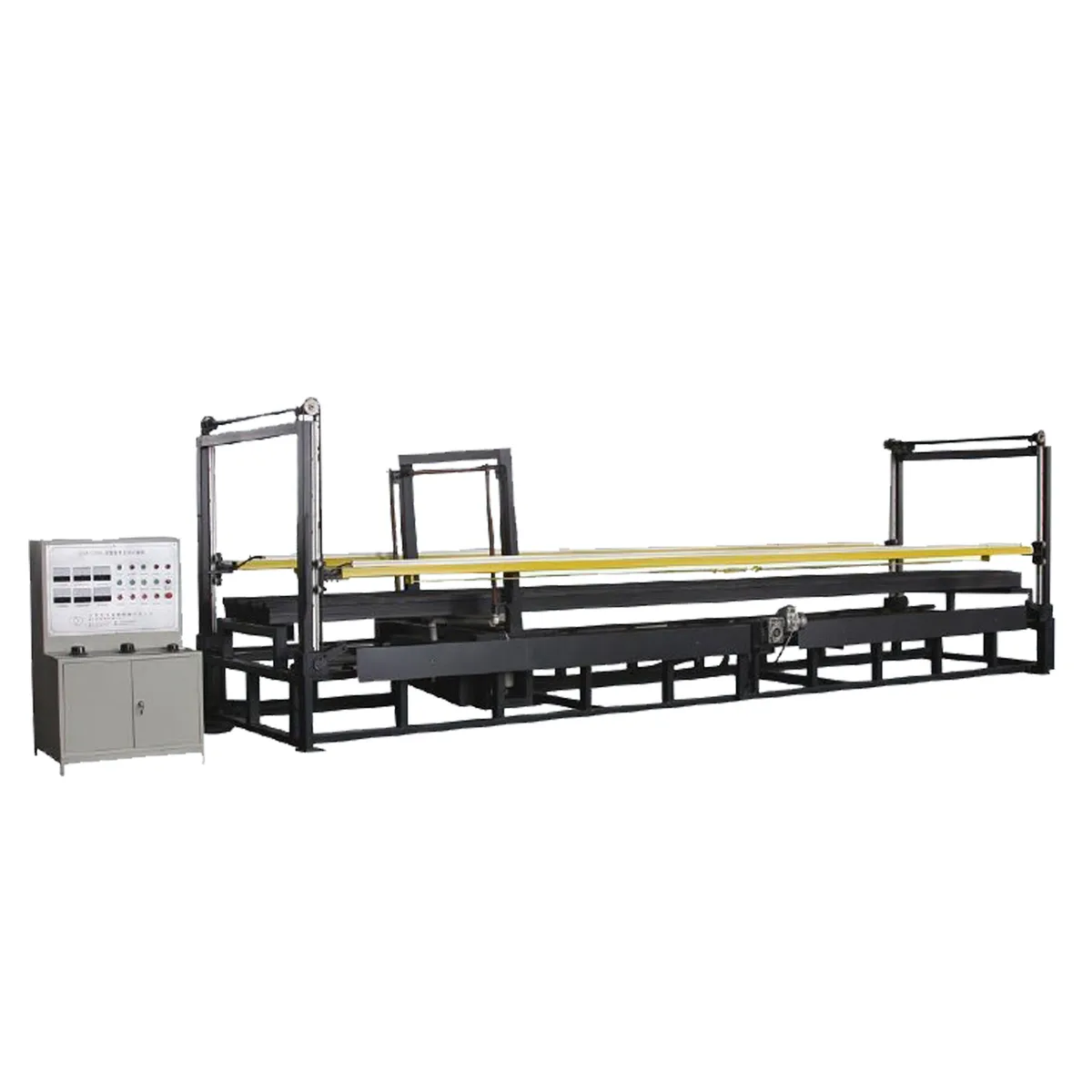

CM-8000 CNC Hot Wire Cutting Machine
The CM-8000 is our largest CNC hot wire cutting machine with an impressive 8,000mm cutting length. Featuring up to 80 wires, SCADA integration, and automatic wire tension compensation, it is the ultimate solution for maximum-length insulation boards and complex 3D architectural cutting projects.
| Max Cutting Length | 8,000 mm |
| Cutting Width | 1,300 mm |
| Wire Speed | 0-3,000 mm/min adjustable |
| Wire Type | Hot wire (Ni-Cr alloy) |
| Installed Power | 15 kW |
| Cutting Accuracy | ±1 mm |
| Number of Wires | 1-80 adjustable |
| Machine Weight | 6,500 kg |
| Certifications | CEISO 9001 |
Key Features
- CNC programmable cutting paths with memory storage
- Adjustable wire spacing for various thicknesses
- Ni-Cr alloy hot wire for clean cuts
- Automatic block feeding and positioning
- Digital wire temperature control with PID
- Horizontal, vertical, and 2D/3D shape cutting modes
- Batch cutting mode for maximum efficiency
- Integrated dust collection system
- Remote monitoring and SCADA integration
- Automatic wire tension compensation
Applications
Maximum-length insulation board productionComplex 3D architectural profile cuttingLarge-scale industrial and civil engineering projects
CE & ISO 9001 Certified 5-Year Warranty 24h Response
